The best feature of the 100g self-adhesive fire extinguishing stickers is that they use double-sided tape as the mounting medium instead of brackets.
The appearance of our product is very special because of its red color, which is very beautiful and smooth.
It is also very practical, power distribution cabinets, energy storage cabinets, control boxes, and other fields are its main fighting place, we can choose electric start, thermal start, and other starting methods.
The product has an aluminum casing with a smooth surface that can withstand high temperatures of several thousand degrees.
The top of the product is fitted with an aviation plug, made of 304 stainless steel, which is used to transmit current and thermal-sensitive media to the extinguishing agent in the tank.

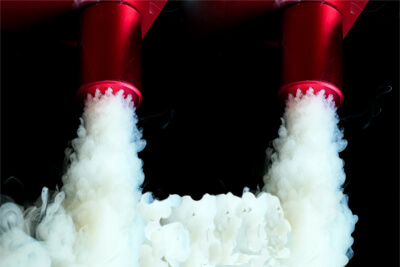

At the same time, the top has more than 20 spray holes with a diameter of 5 mm, when the fire extinguishing sticker is activated, the fire extinguishing agent will be ejected from these spray holes.
The bottom of the product is made of 60-75mm diameter double-sided tape (normally 3M brand), which is used to fix the product in a specific enclosed space.
On the side of the product, there is a product label, a caution label, and a certificate of conformity label.
Compared to the 304 stainless steel casing aerosol generator, the biggest difference is the material and color of the casing.
More importantly, it can monitor and secure the defense zone anytime, anywhere.
Major Data of The 100g Self-adhesive Fire Extinguishing Sticker
Next, let’s list its major parameter settings:
- Name of Product: Aerosol Fire Extinguishing Sticker.
- Model: AW-QH-100E/TH/ST.
- Mass of FPC compound: 100 grams or 0.1 kilograms.
- Protective Volume: 1 m3.
- Dimension: Diameter of 8 cm, Height of 12 cm not include aviation plugin.
- Operational Discharge Time: 10 to 15 seconds.
- Extinguishing Media: Aerosol.
- Activation method: thermal and electric.
- Power Supply Requirement: 3 to 220 VDC, current 500mA.
- Thermal temperature: 57℃, 68℃, 79℃, 93℃, and 175℃ thermal cord.
- Wire length: 0.3 meters adjustable.
- Cylinder Temperature: less than 200℃.
- Color process: electroplating or oxidation.
- Weight (Gross): Approximate 2 kilograms (excluding bracket).
- Useful Life: 120 months.
- Operating Temperature and Humidity: -40 to +95℃, 95% humidity.
- Fire Class: EN2: A, B, C, E, F – NFPA 10: A, B, C, E, K.
Our company and products are unique.
We have always been committed to developing and producing the highest quality fire protection products to lead the fire protection industry.
Product quality is the lifeblood of our enterprise, each product has to go through strict quality tests before leaving the factory to ensure that the product has no defects.
In addition, for this product, the following features are included:
- The color of the product is red and very nice, it is oxidized by a special process.
- The workmanship of the product is very delicate, the shell is smooth without any scratches.
- Installation is very simple, the main mounting material is double-sided tape.
- With high extinguishing capacity, the extinguishing agent can cover a space of 1 cubic meter in a matter of seconds.
- The product has a variety of start-up methods, with 3 different start-up methods.
- Stress-free products with a high safety index, supported by CE certification.
It has many other features, please consult the specific service staff.
This product has the same range of applications as the 304 stainless steel aerosol.
It is mainly installed in the following scenarios:
- Containerized energy storage.
- Industrial energy storage.
- solar energy storage.
- Electrical cabinet.
- Electric control panel.
- Car Engine Compartment.
- Wind power.
It is best mounted in the ceiling or at the bottom because of its double-sided adhesive mounting medium.
